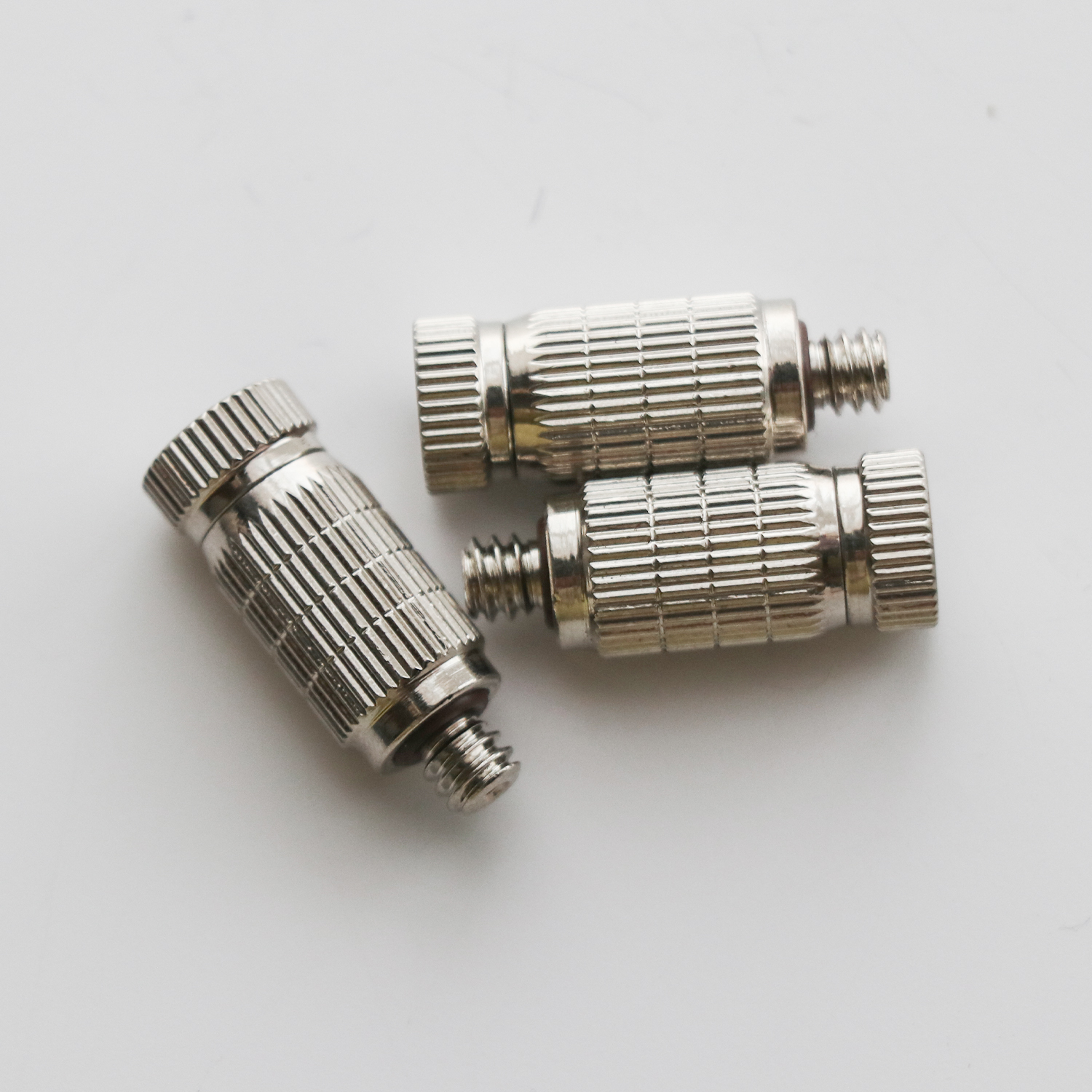

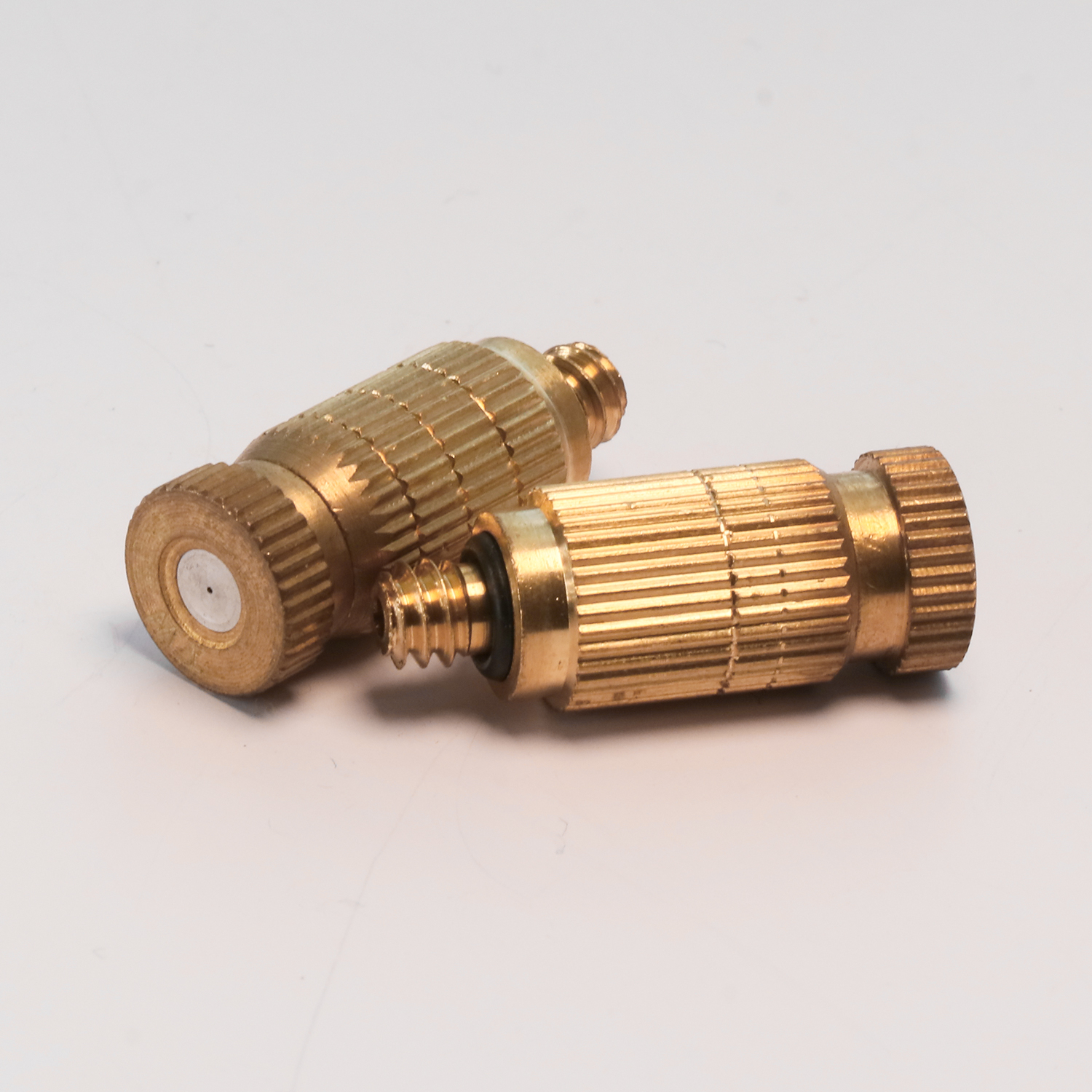

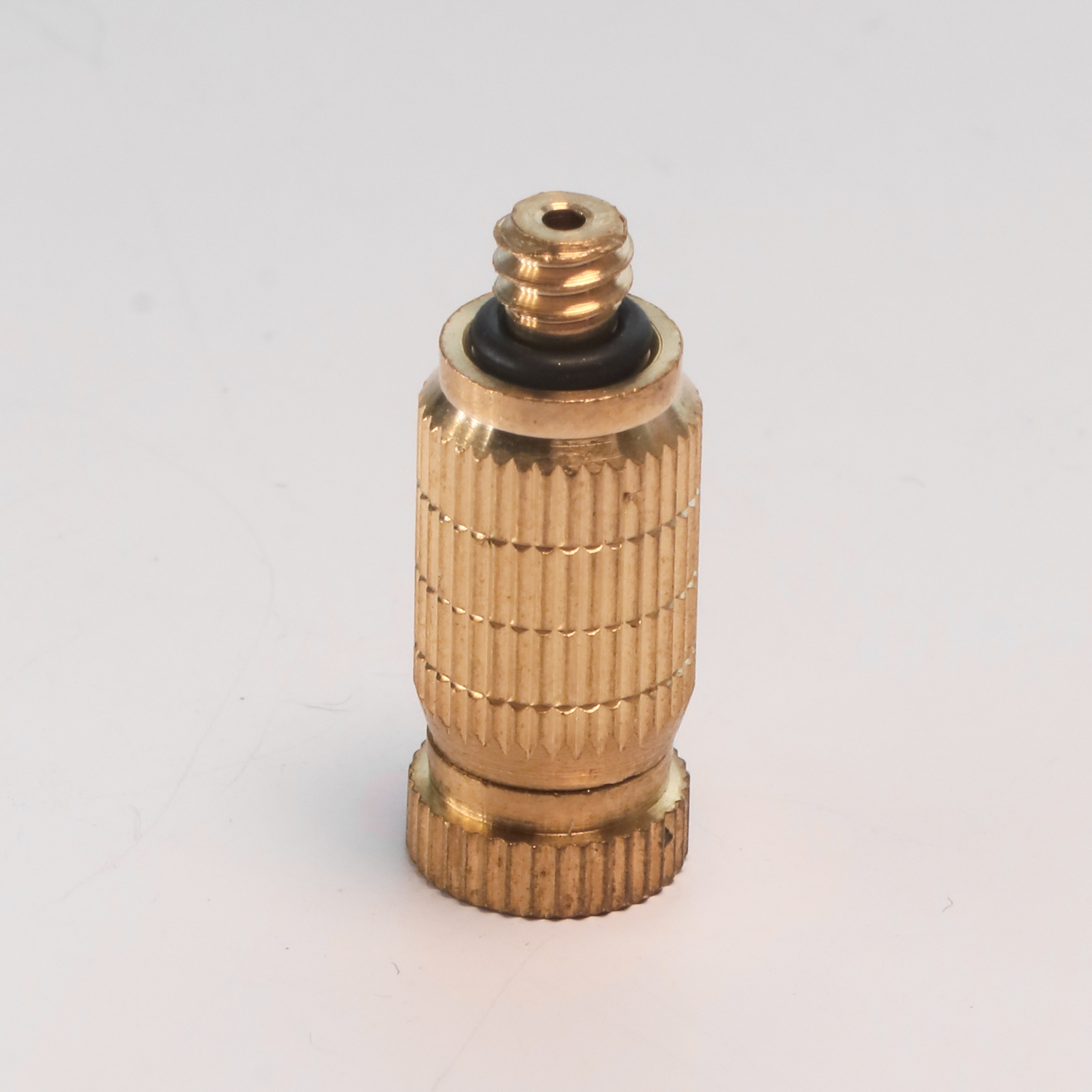

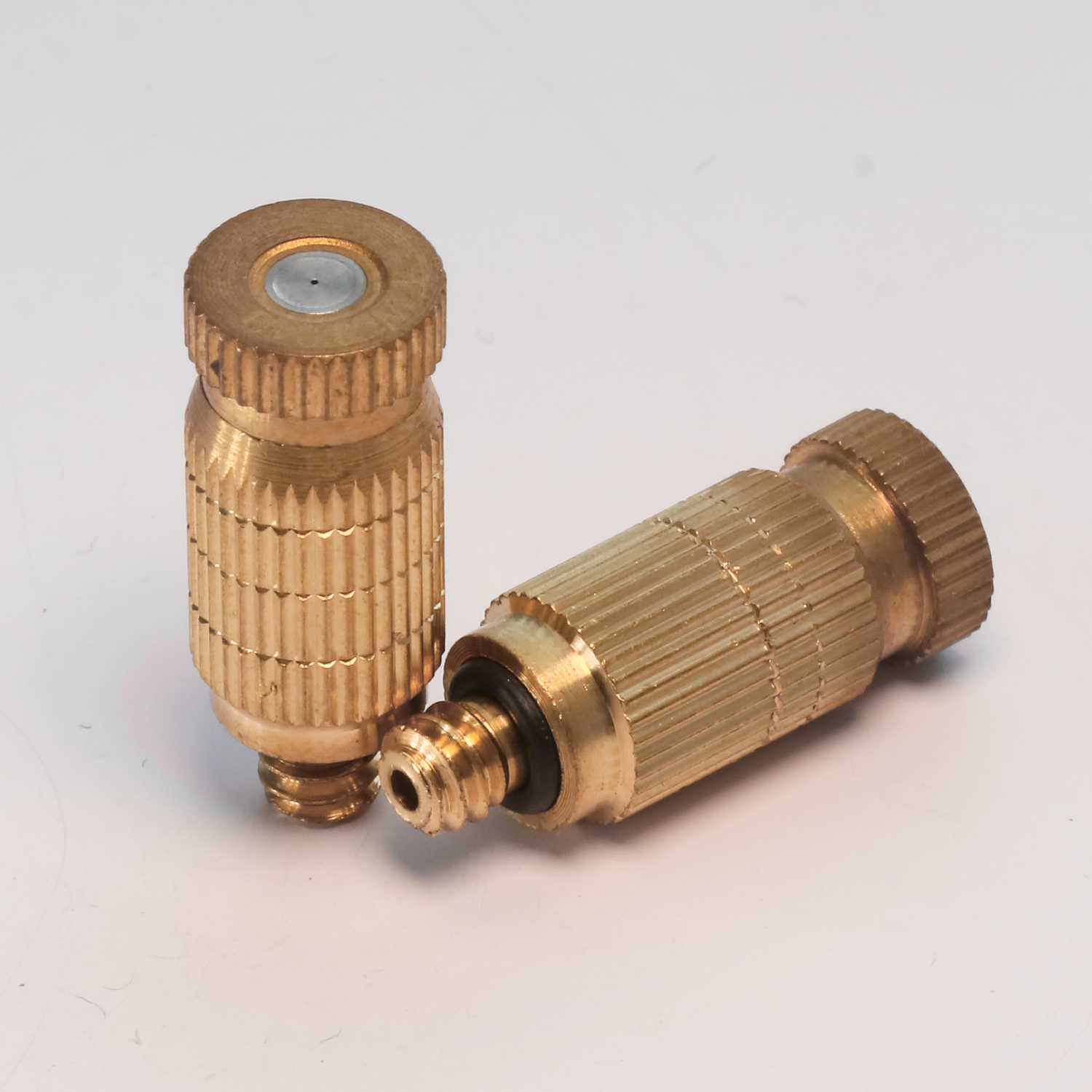

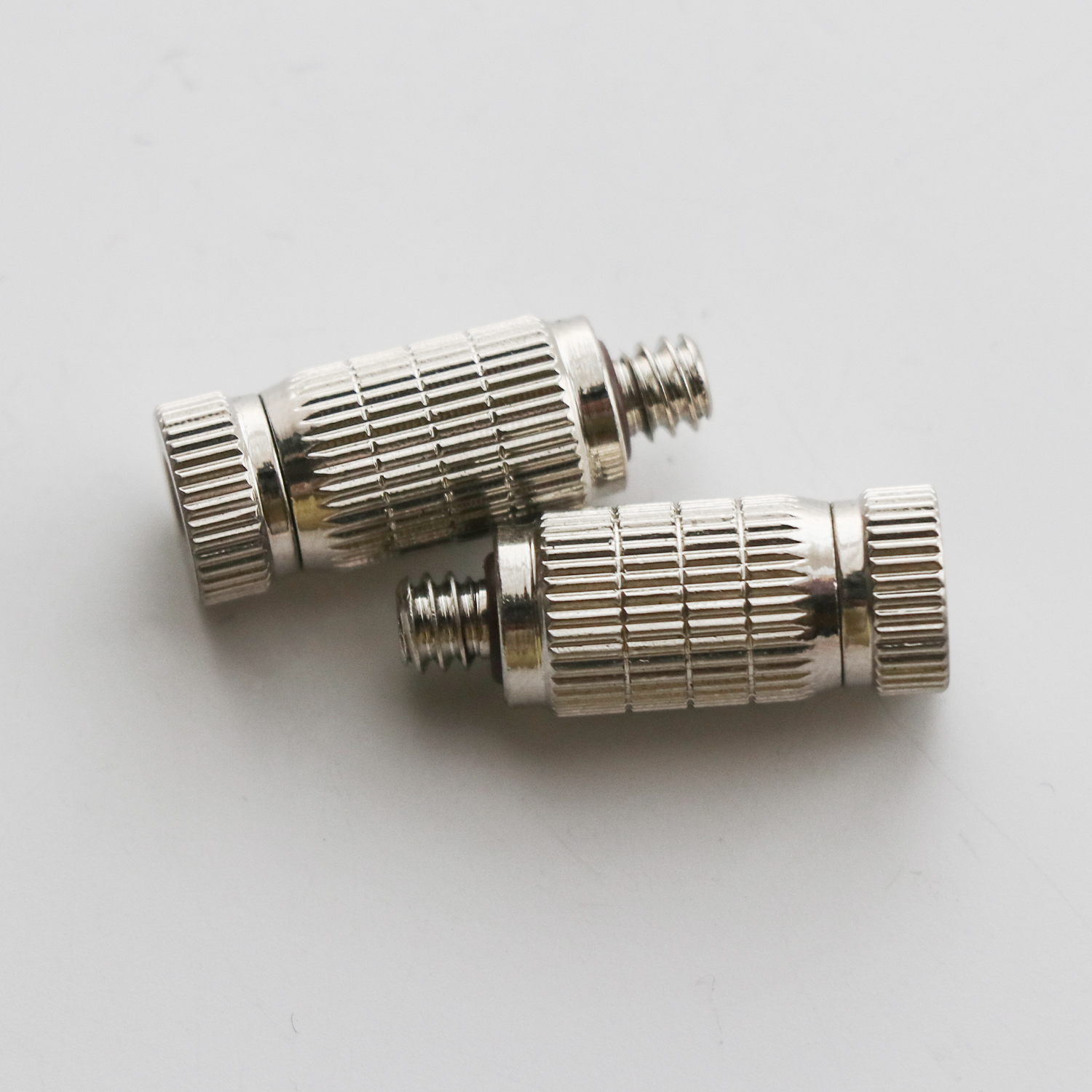

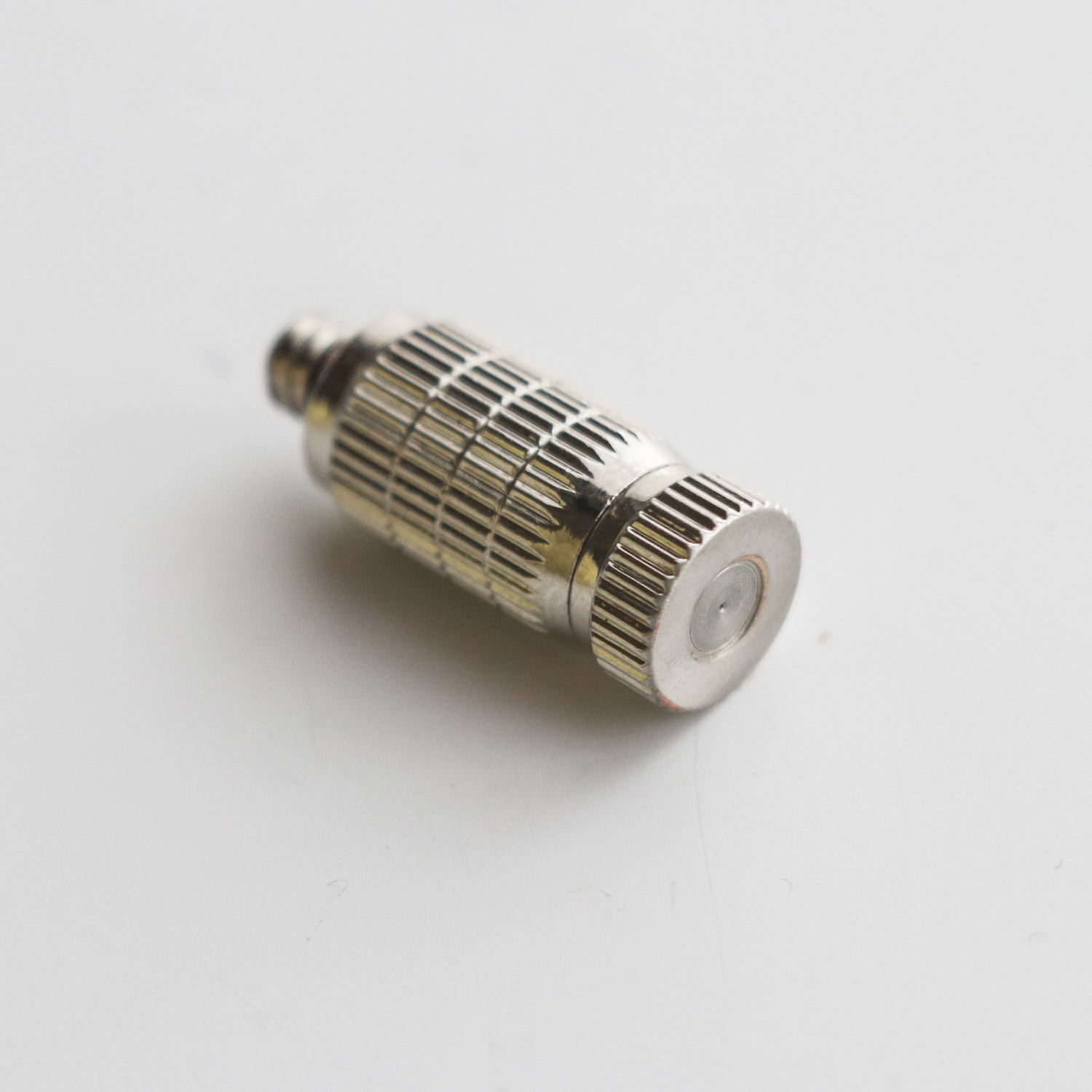

Stainless Steel Tip Misting Nozzle

Stainless Steel Tip Misting Nozzle With Built-In Filter & Anti-Drop Structure For mist Systems

Our stainless steel tip misting nozzle features wear-resistant stainless steel nozzle tip, built-in spring anti-drip mechanism to effectively avoid water dripping after fog machine shutdown, keeping mist scenes clean without water stains. A full range of thread, material, filter and orifice size combinations are available to fit diverse atomization, humidification and dust suppression requirements. Custom special specifications are supported on request.

Complete Product Technical Specifications

Thread Standard

• 10/24unc
• 12/24unc

Nozzle Tip Material Options

• Brass / Stainless Steel
• Ni-Plated Brass / Stainless Steel
• Complete 303 Stainless Steel
• Complete 316 Stainless Steel

Adapter Body Material Options

• Brass
• Ni-Plated Brass
• Complete 303 Stainless Steel
• Complete 316 Stainless Steel

Optional Orifice Sizes

• 0.10mm/0.004″
• 0.15mm/0.006″
• 0.20mm/0.008″
• 0.30mm/0.012″
• 0.40mm/0.016″
• 0.50mm/0.020″

* Other specs will be available on request.

Core Advantages of Stainless Steel Tip Misting Nozzle

• Hard stainless steel nozzle tip, excellent wear resistance, long service life under long-time high-pressure continuous atomization

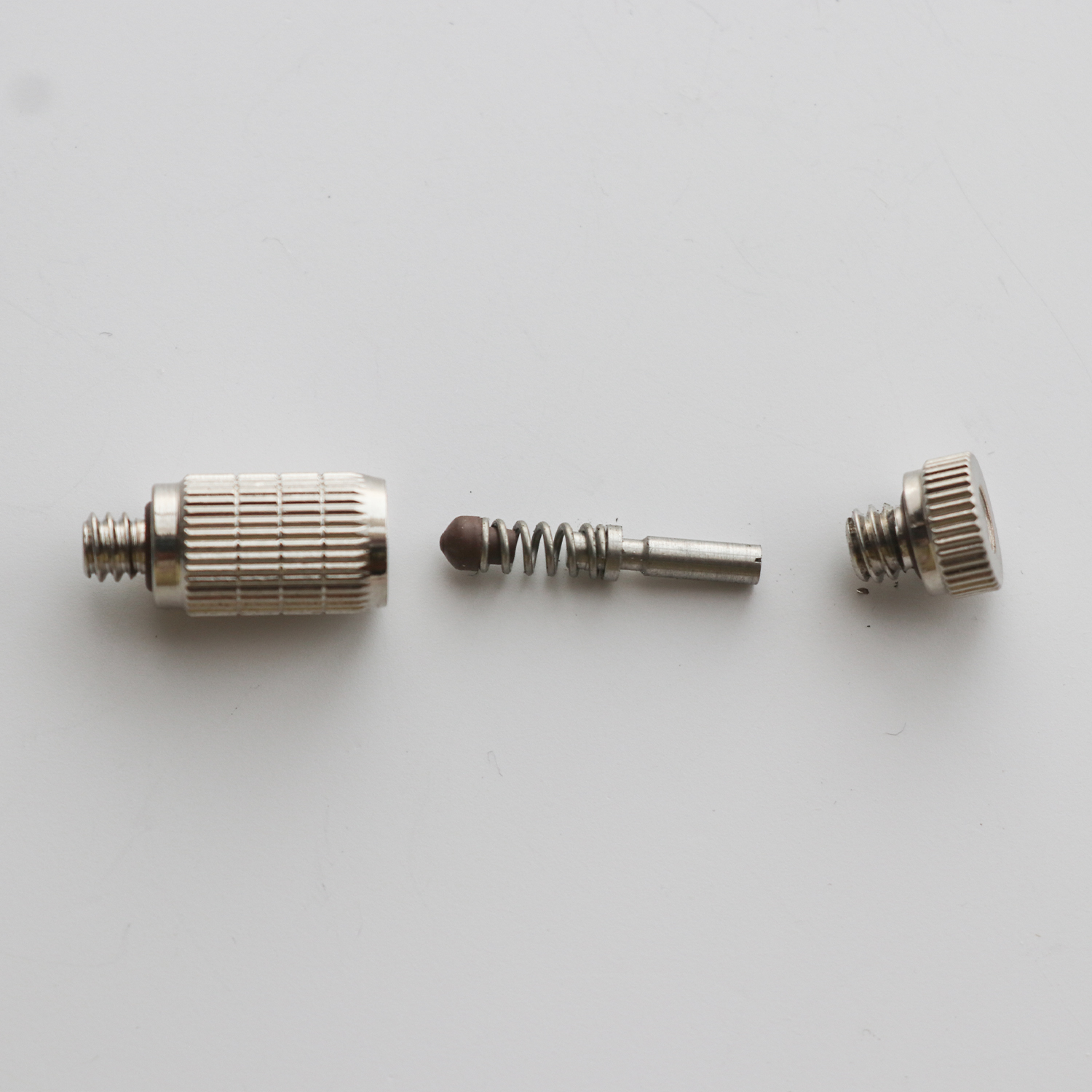

• Built-in anti-drop spring structure, stop residual water dripping after equipment shutdown, protect plants, ground and outdoor furniture
• Dual filter options: PE filter and 304 stainless steel mesh filter, block impurities thoroughly to prevent nozzle clogging
• Rich body material selections: brass, nickel-plated brass, 303 & 316 stainless steel for anti-rust and chemical corrosion resistant demands
• 10 optional orifice sizes, freely adjust fog fineness and water flow for light humidification to heavy industrial dust control
• Standard 10/24unc/2A thread, perfectly compatible with all our nozzle swivel, extension rod and multi-hole nozzle cluster fittings
• Precision machining sealing structure, stable atomization effect under 70–100bar working pressure
• Accept customized material, orifice diameter and special thread for unique industrial mist system projects

Wide Misting Application Scenarios

• Commercial: Restaurant patio cooling, amusement park landscape fog, indoor café constant humidification
• Agriculture: Greenhouse plant humidification, livestock farm cooling & disinfection mist layout
• Industrial: Factory workshop dust suppression, production line cooling and disinfection fog system
• Landscape: Park artificial fog decoration, courtyard garden decorative mist effect

Matching Misting System Accessories

Match this stainless steel tip misting nozzle with our full set mist pipeline accessories and fog equipment: slip lock quick fittings, compression fittings, stainless steel & nylon mist tube, nozzle swivel, nozzle extension, multi-hole nozzle cluster and high pressure fog machine with / without oil pump.
