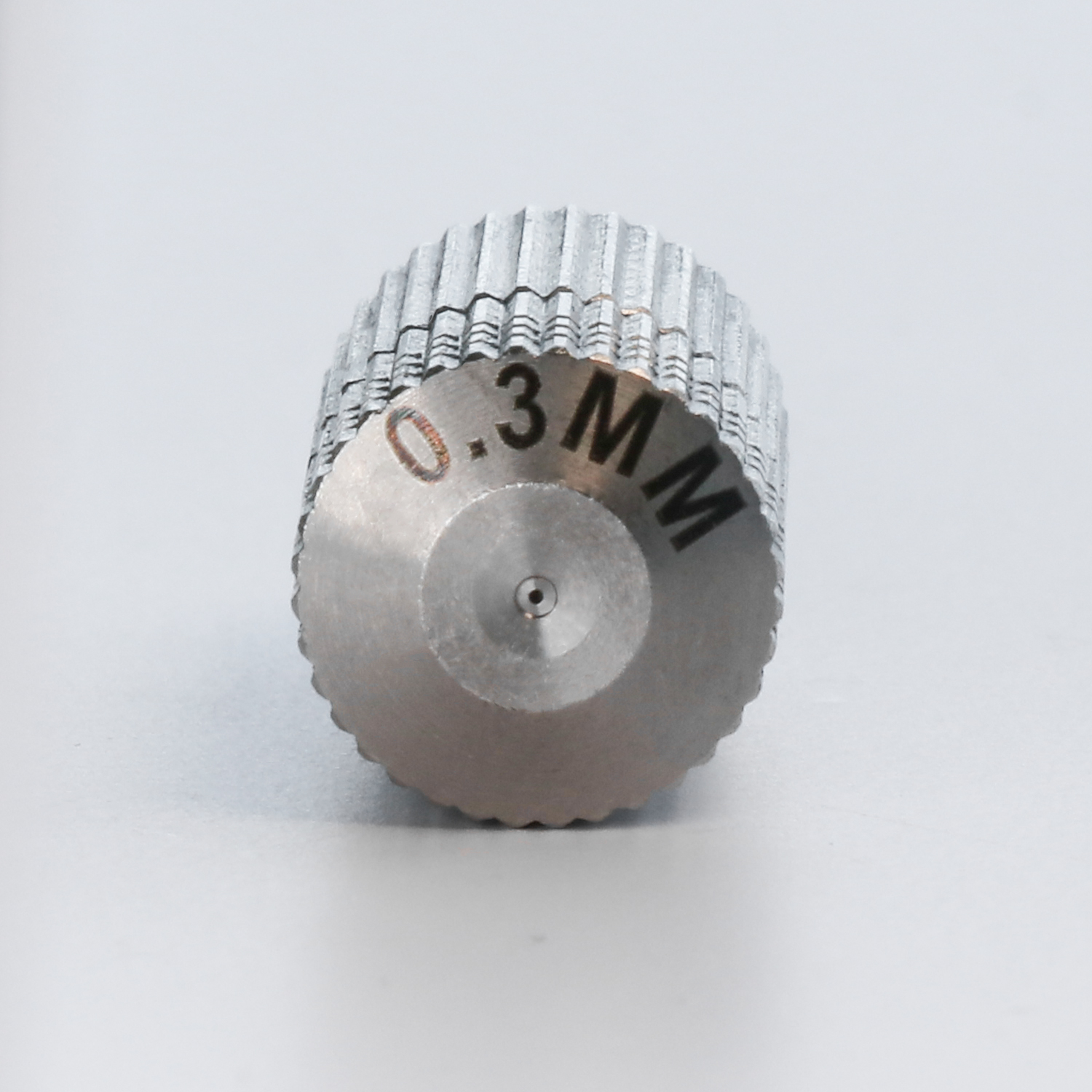

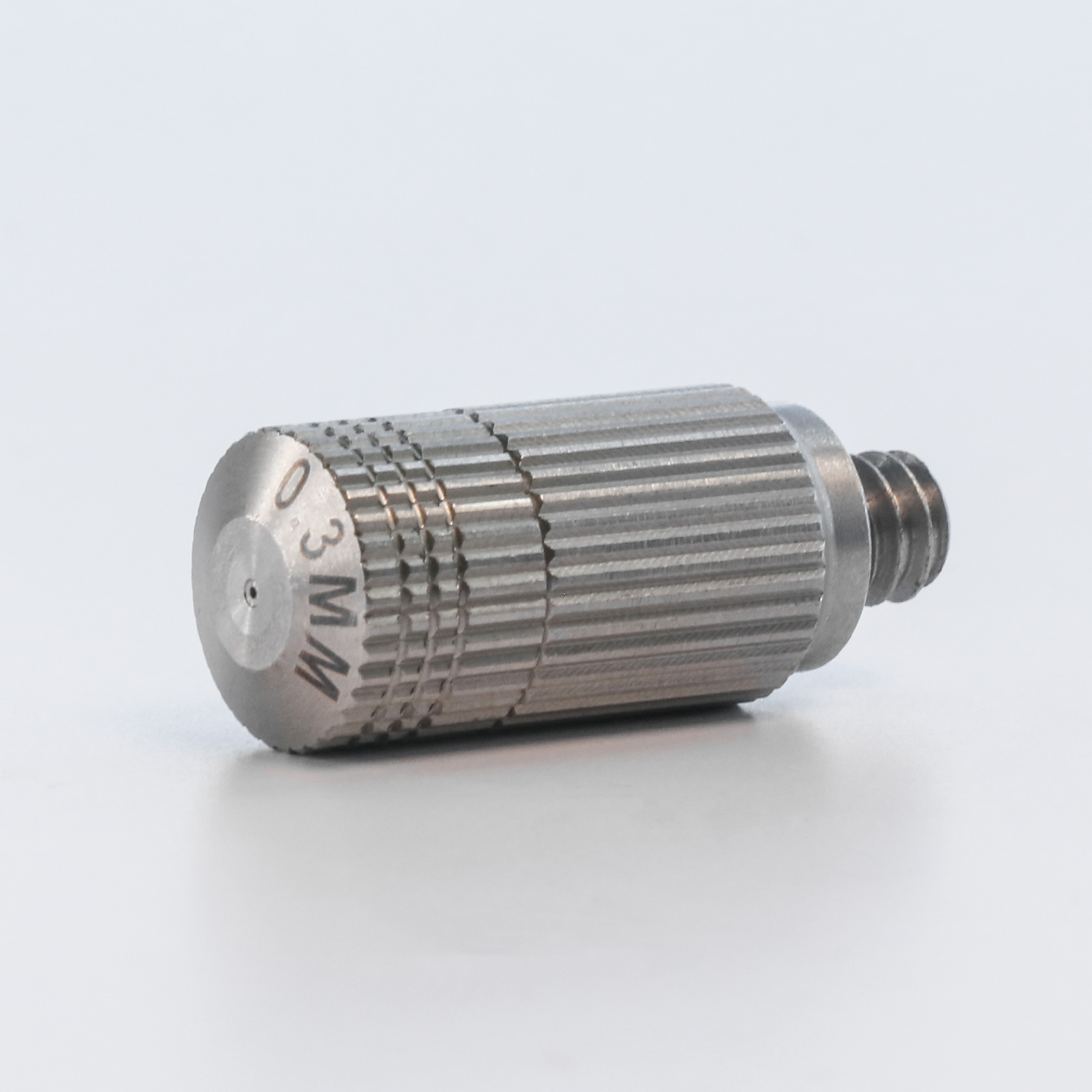

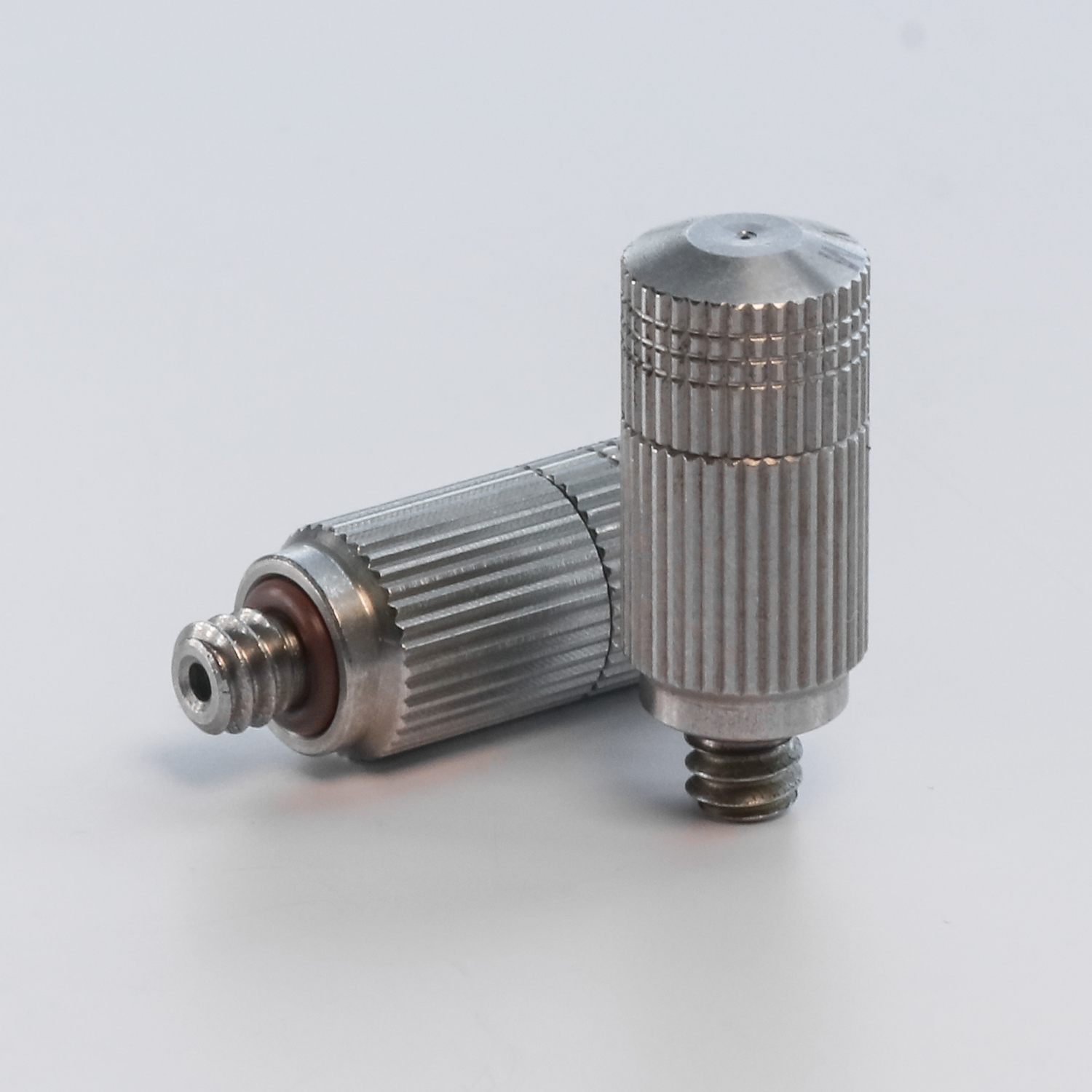

Full Stainless Steel Misting Nozzle

Full Stainless Steel Misting Nozzle With Built-In Filter For High Pressure Fog Systems

Our full stainless steel misting nozzle adopts all 303 stainless steel integrated structure for both nozzle tip and adapter body, delivering outstanding anti-rust, anti-corrosion and wear-resistant performance for long-term continuous mist work. Equipped with optional built-in filter to block pipeline impurities and prevent clogging, this nozzle uses standard 12/24unc/2A thread, with multiple orifice sizes to adjust fog fineness and flow rate. Custom special specifications are supported on request for unique industrial mist projects.

Complete Product Technical Specifications

Thread Standard

• 12/24unc/2A

Nozzle Tip Material Optional Solutions

• Brass
• Ni-Plated Brass
• Complete 303 Stainless Steel (Full SS Version)

Adapter Body Material Optional Solutions

• Brass
• Ni-Plated Brass
• Complete 303 Stainless Steel (Full SS Version)

Built-In Filter Options

• PE Filter
• 304 Stainless Steel Mesh Filter

Available Orifice Sizes

• 0.10mm/0.004″
• 0.15mm/0.006″
• 0.20mm/0.008″
• 0.30mm/0.012″
• 0.40mm/0.016″
• 0.50mm/0.020″

* Other specs will be available on request.

Core Advantages of Full Stainless Steel Misting Nozzle

• Full 303 stainless steel tip + adapter integrated design, excellent resistance to rust, acid, alkali and outdoor extreme weather
• High hardness stainless steel structure, strong wear resistance, no deformation under long-hour high-pressure continuous atomization
• Dual filter selection: PE filter and 304 stainless steel mesh filter, effectively intercept impurities to avoid nozzle blockage, easy to disassemble and clean
• 6 kinds of orifice sizes to choose, freely match light humidification, landscape fog and heavy industrial dust suppression demands
• Standard 12/24unc/2A thread, perfectly compatible with nozzle swivel, nozzle extension and multi-hole nozzle cluster fittings
• Precision internal sealing structure, stable fine mist output under 70–100bar high working pressure without leakage
• Multi material combination options available, you can select brass / nickel-plated brass or upgrade to full stainless steel version as needed
• Accept customized thread, orifice size and special surface treatment for special mist system engineering orders

Wide Misting Application Scenarios

• Agriculture: Greenhouse plant humidification, livestock farm cooling & disinfection mist pipeline layout
• Commercial: Restaurant outdoor patio cooling, amusement park landscape fog decoration, café constant humidification
• Industrial: Factory workshop dust suppression, chemical plant anti-corrosion mist cooling, production line disinfection fog
• Landscape: Park artificial fog scenic spot, courtyard garden decorative mist effect

Matching Supporting Misting System Accessories

Pair this full stainless steel misting nozzle with our complete mist pipeline accessories and fog equipment: slip lock quick fittings, compression fittings, stainless steel & nylon mist tube, nozzle swivel, nozzle extension, multi-hole nozzle cluster and high pressure fog machine with / without oil pump.
