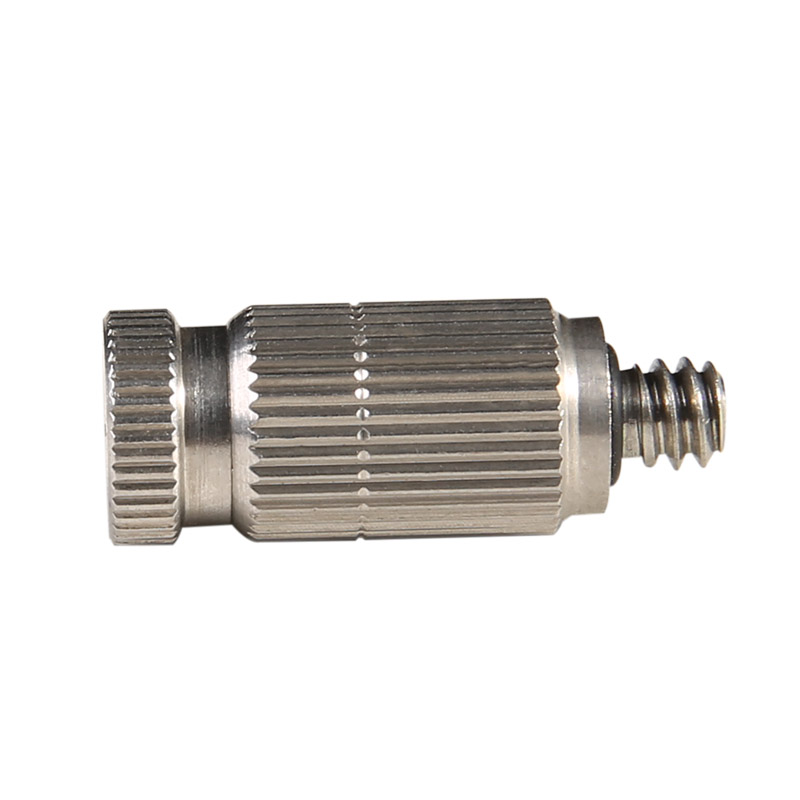

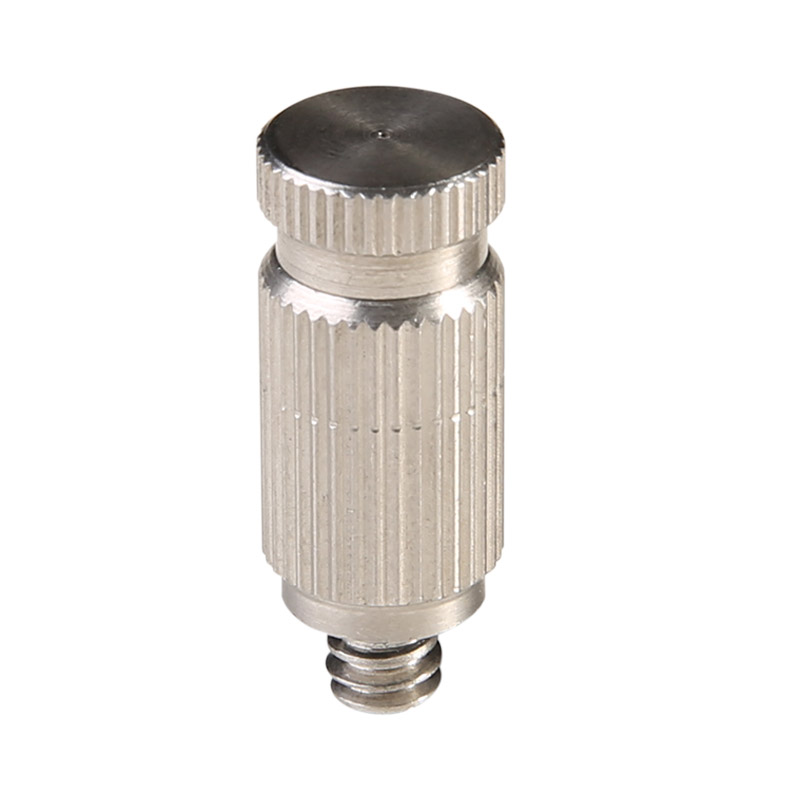

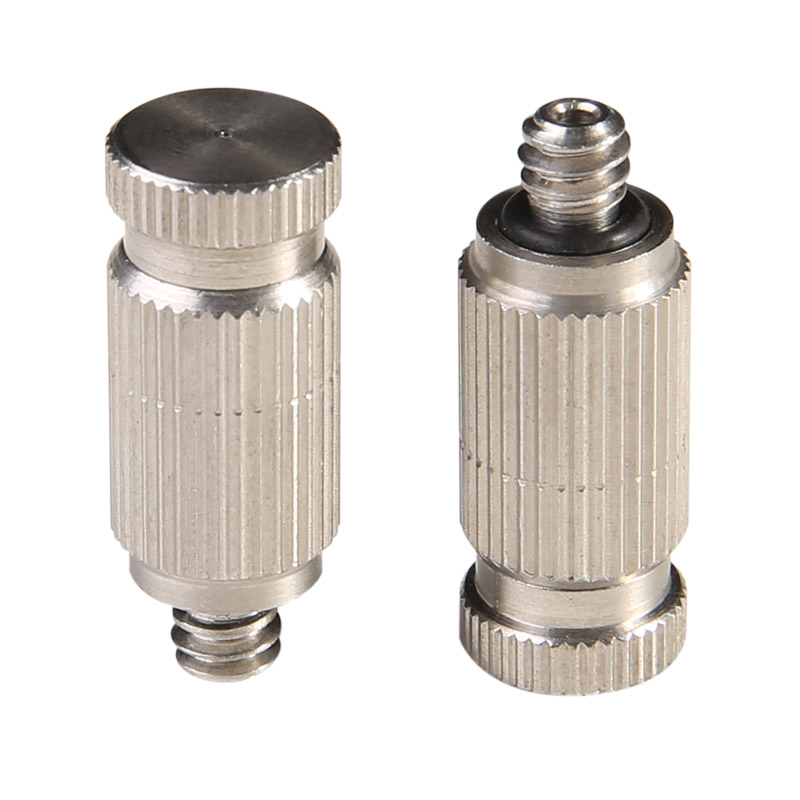

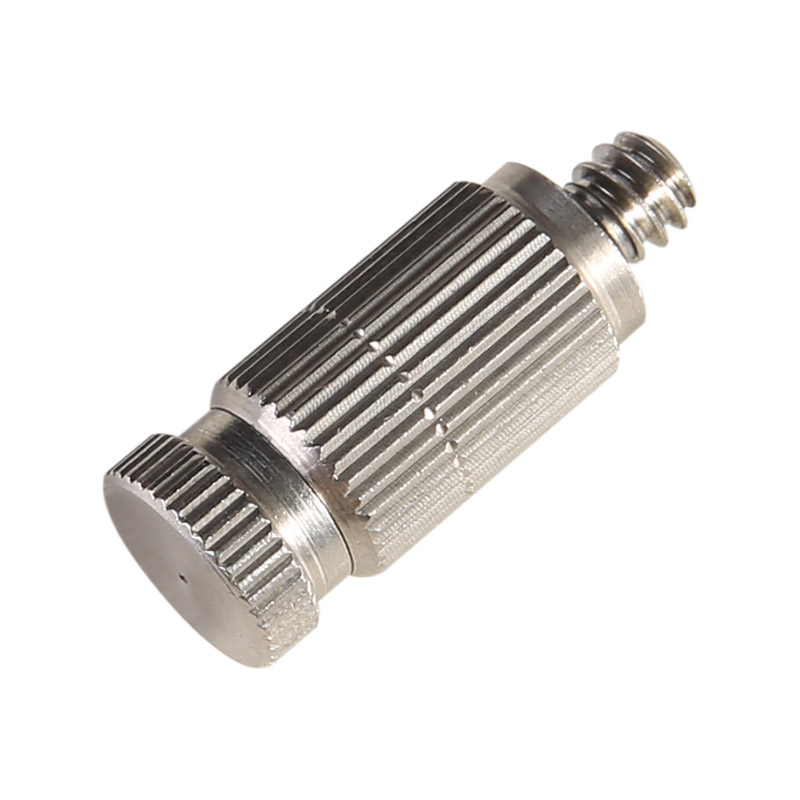

Anti-drop Misting Nozzle

Anti-drop Misting Nozzle With Built-In Filter For High Pressure Fog Systems

Our anti-drop misting nozzle adopts internal spring anti-drip structure, effectively eliminate water dripping after the fog machine stops working, keep clean and dry for patio, landscape and greenhouse mist projects. Multiple combinations of thread, material, filter and orifice size are optional to match different working pressure and atomization requirements. Custom special specifications are supported on request.

Complete Product Technical Specifications

Thread Standard

• 10/24unc/2A

Nozzle Tip Material Options

• Brass / Stainless Steel
• Ni-Plated Brass / Stainless Steel
• Complete 303 Stainless Steel
• Complete 316 Stainless Steel

Adapter Body Material Options

• Brass
• Ni-Plated Brass
• Complete 303 Stainless Steel
• Complete 316 Stainless Steel

Built-In Filter Types

• PE Filter
• 304 Stainless Steel Mesh Filter

Optional Orifice Sizes

• 0.10mm/0.004″
• 0.15mm/0.006″
• 0.20mm/0.008″
• 0.30mm/0.012″
• 0.40mm/0.016″
• 0.50mm/0.020″

* Other specs will be available on request.

Core Advantages of Anti-Drip Misting Nozzle

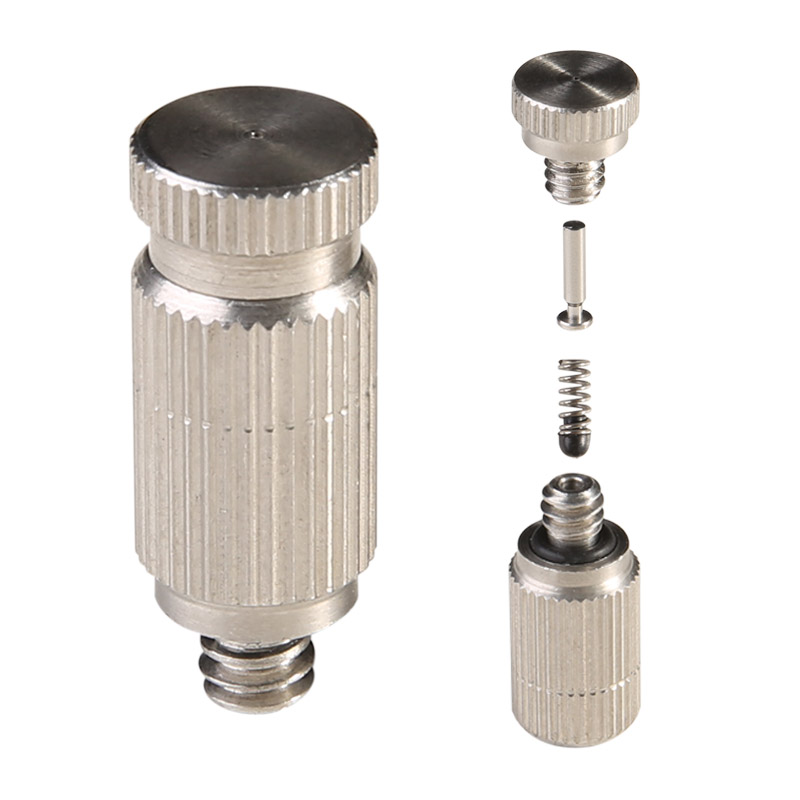

• Built-in spring anti-drop mechanism, no water dripping after equipment shutdown, protect ground, plants and furniture from water stain damage
• Dual filter optional design, effectively block impurities to avoid nozzle clogging and extend service life
• Rich material matching solutions: brass, nickel-plated brass, 303 / 316 stainless steel for anti-rust & anti-corrosion demands
• Wide range of orifice sizes, adjustable fog fineness and flow rate for light humidification to heavy dust suppression
• Standard 10/24unc/2A thread, compatible with all our nozzle swivel, extension and multi-hole nozzle cluster
• Precision machined body, stable atomization under long-term 70–100bar high pressure continuous work
• Custom material, orifice and special thread available for special industrial misting projects

Wide Application Scenarios

• Commercial: Restaurant patio cooling, amusement park landscape fog, café humidification
• Agriculture: Greenhouse plant humidification, livestock farm cooling & disinfection
• Industrial: Workshop dust suppression, factory cooling and disinfection mist system
• Landscape: Park artificial fog decoration, courtyard garden decorative mist effect

Matching Misting System Accessories

Pair this anti-drop misting nozzle with our full set mist fittings and equipment: slip lock quick fittings, compression fittings, stainless steel & nylon mist tube, nozzle swivel, nozzle extension, nozzle cluster and high pressure fog machine with or without oil pump.
