New Design Anti Drip Misting Nozzle

New Design Anti Drip Misting Nozzle

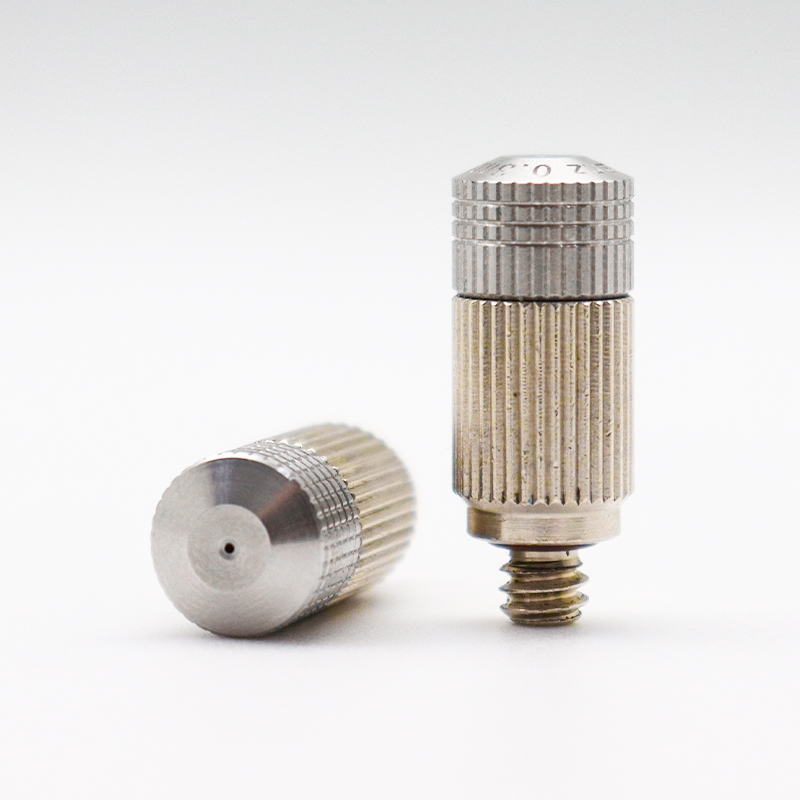

Our stainless steel + nickel plated brass mist nozzle adopts a cost-effective composite structure: wear-resistant stainless steel nozzle tip matched with anti-rust nickel plated brass adapter body. Equipped with optional built-in filter to block water impurities and prevent nozzle clogging, this mist nozzle uses standard 10/24unc/2A thread, with multiple orifice sizes to adjust fog fineness and water flow. We also offer full brass and full 303 stainless steel alternatives, and custom special specifications are available on request for engineering bulk orders.

Complete Product Technical Specifications

Thread Standard

• 10/24unc/2A

Nozzle Tip Material Options

• Brass
• Ni-Plated Brass
• Complete 303 Stainless Steel (Core matching material for this model)

Adapter Body Material Options

• Brass
• Ni-Plated Brass (Core matching material for this model)
• Complete 303 Stainless Steel

Built-In Filter Types

• PE Filter
• 304 Stainless Steel Mesh Filter

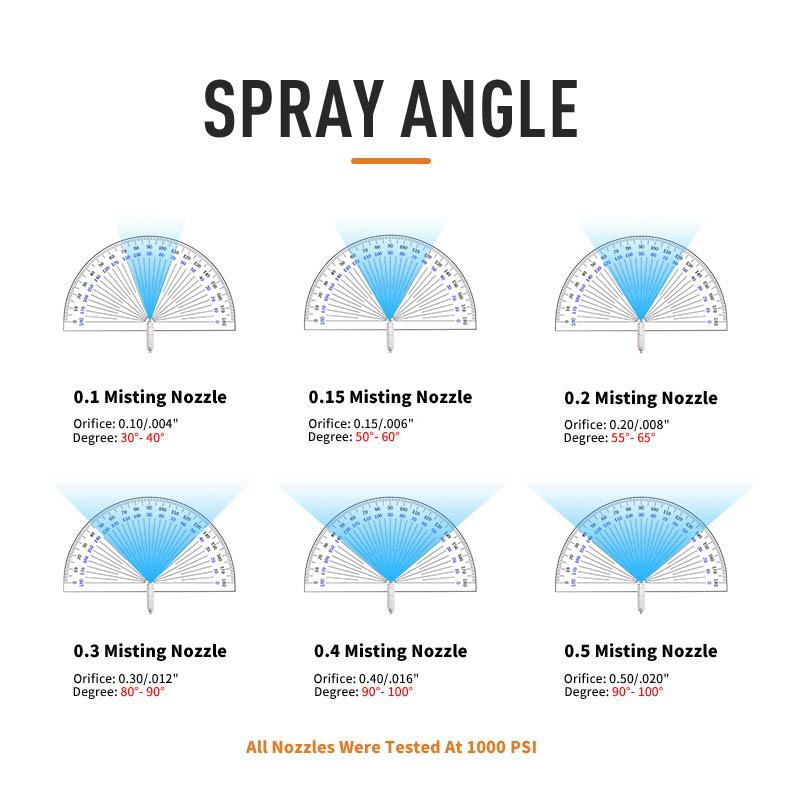

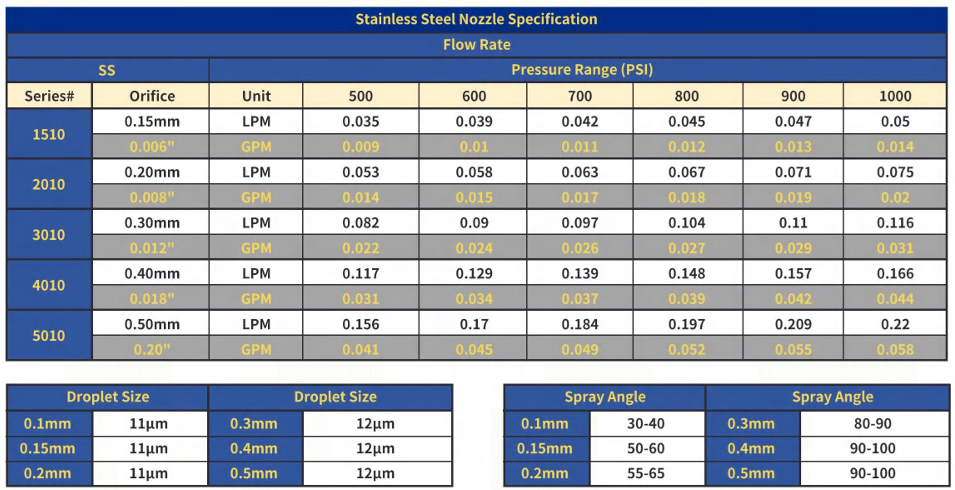

Optional Orifice Sizes

• 0.10mm/0.004″
• 0.15mm/0.006″
• 0.20mm/0.008″
• 0.30mm/0.012″
• 0.40mm/0.016″
• 0.50mm/0.020″

* Other specs will be available on request.

Core Advantages of Stainless Steel + Nickel Plated Brass Mist Nozzle

• Composite matching design: hard stainless steel tip for long-term wear resistance, nickel plated brass body for low cost and good rust resistance
• Nickel plating layer isolates moisture and weak chemical liquid, effectively avoid brass oxidation and discoloration in outdoor humid environment
• Dual filter choices: PE filter and 304 stainless steel mesh filter, fully intercept pipeline impurities to avoid nozzle blockage, easy to disassemble and clean

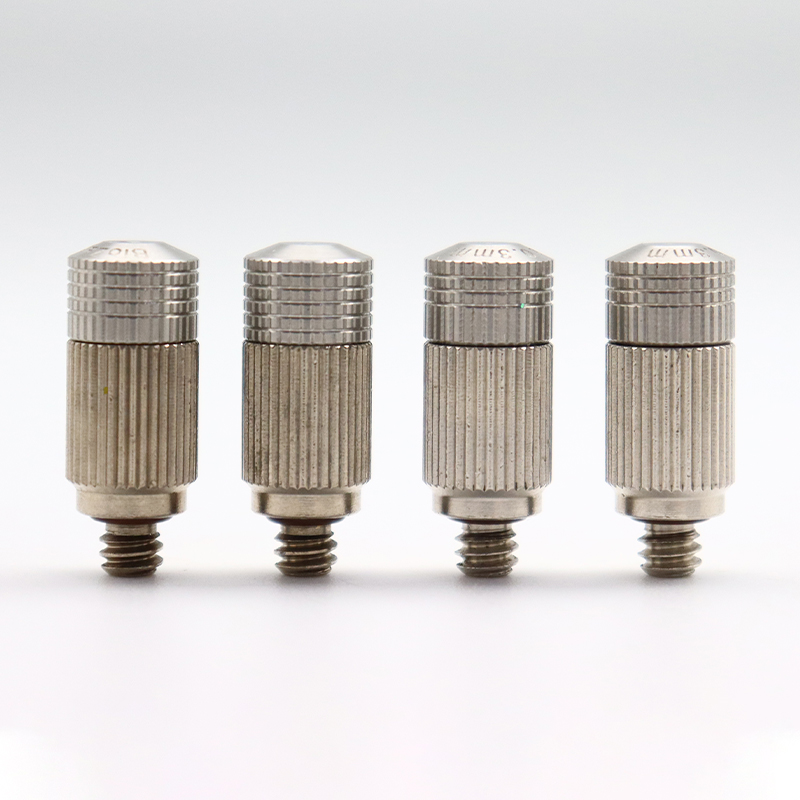

• 6 kinds of orifice sizes optional, flexible to meet light greenhouse humidification, landscape fog and medium industrial dust suppression
• Standard 10/24unc/2A thread, perfectly compatible with nozzle swivel, nozzle extension and multi-hole nozzle cluster fittings

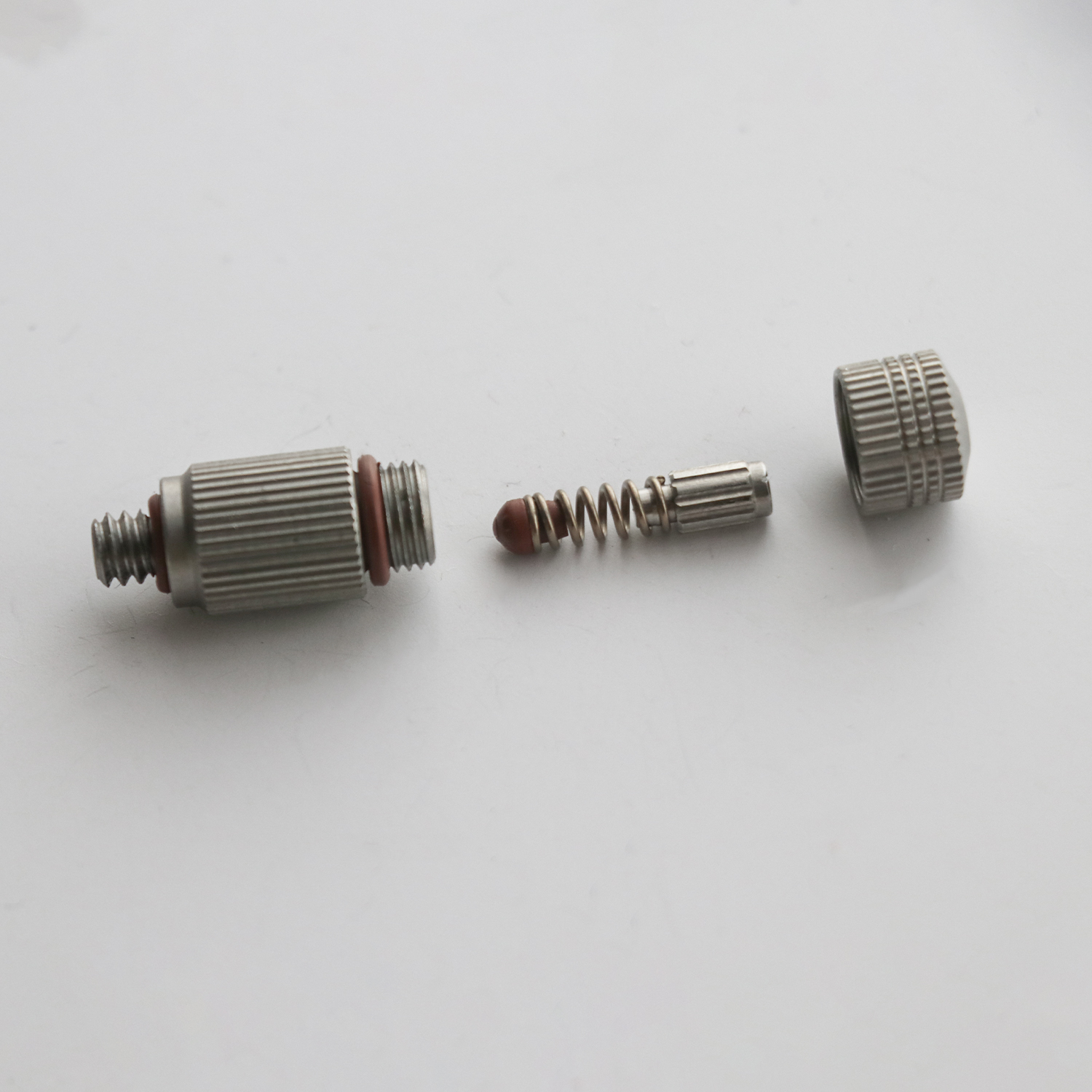

• Precision internal sealing structure, stable fine mist output under 70–100bar high working pressure without water leakage

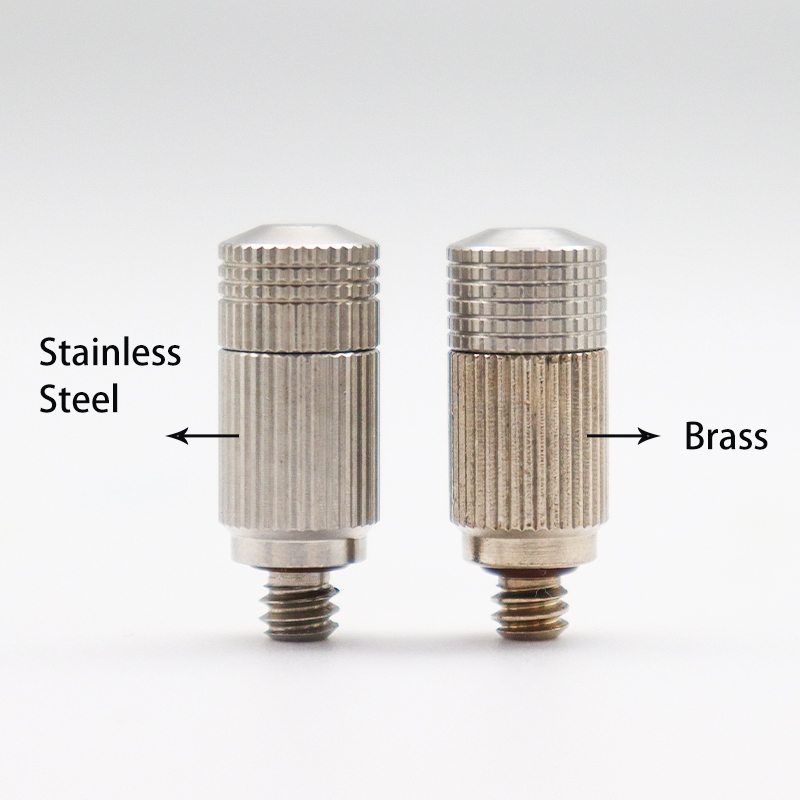

• Three material collocation schemes for selection: full brass, stainless steel tip + nickel-plated brass body, full 303 stainless steel
• Support customized thread, orifice diameter and surface treatment for special industrial mist system projects

Wide Misting Application Scenarios

• Agriculture: Greenhouse plant humidification, livestock farm cooling and disinfection mist pipeline layout
• Commercial: Restaurant outdoor patio cooling, amusement park landscape fog decoration, café constant indoor humidification
• Industrial: Factory workshop dust suppression, production line local cooling and disinfection fog system
• Landscape: Park artificial fog scenic spot, courtyard garden decorative mist effect

Matching Supporting Misting System Accessories

Match this stainless steel + nickel plated brass mist nozzle with our full set mist pipeline fittings and fog equipment: slip lock quick fittings, compression fittings, stainless steel & nylon mist tube, nozzle swivel, nozzle extension, multi-hole nozzle cluster and high pressure fog machine with / without oil pump.
